# OvrAudio

### Description

This Node is used to manage the most common interactions with the Unity Audio Component.

It requires an [AudioSource](https://docs.unity3d.com/ScriptReference/AudioSource.html) to be set up, see [Unity Manual](https://docs.unity3d.com/Manual/class-AudioSource.html) for more info.

Based on the action the AudioSource is required to perform, this component changes its behavior and requirements.

### Action Types

The OVER SDK provides several ways to interact with Unity AudioSource Component. A list can be found in [OvrAudioActionType](/over-sdk-manual/ovr-component-system-ancient-legacy/nodes/unity-components-interactors/ovraudio/ovraudioactiontype.md).

#### Play Clip At Point

Sets an AudioClip to the AudioSource and plays it at a given position in world space, defined by an [OvrVector3](/over-sdk-manual/ovr-component-system-ancient-legacy/nodes/variables/ovrnumericvariable/ovrvector3.md).

{% hint style="info" %}
**Note**: the following attributes are added to the existing ones from the super class [OvrNode](/over-sdk-manual/ovr-component-system-ancient-legacy/nodes/ovrnode.md)
{% endhint %}

<table><thead><tr><th width="205.7659040188865">Name</th><th width="204.3279424240331">Type</th><th width="340.1572968009442">Description</th></tr></thead><tbody><tr><td>AudioSource</td><td><a href="https://docs.unity3d.com/ScriptReference/AudioSource.html">AudioSource</a></td><td>Unity AudioSource Component</td></tr><tr><td>ActionType</td><td><a href="/pages/jBcX1hdmYMcok7FgGMfP">OvrAudioActionType</a></td><td>Action type [<a href="/pages/jBcX1hdmYMcok7FgGMfP">PlayClipAtPoint</a>]</td></tr><tr><td>Clip</td><td><a href="https://docs.unity3d.com/ScriptReference/AudioClip.html">AudioClip</a></td><td>Unity 3D AudioClip</td></tr><tr><td>Position</td><td><a href="/pages/YKgJhI2mhTDnKx0wgx3s">OvrVector3</a></td><td>Position in space</td></tr><tr><td>Volume</td><td><a href="/pages/XQfQFoPQbUdpQHI6RGlQ">OvrFloat</a></td><td>Audio volume</td></tr></tbody></table>

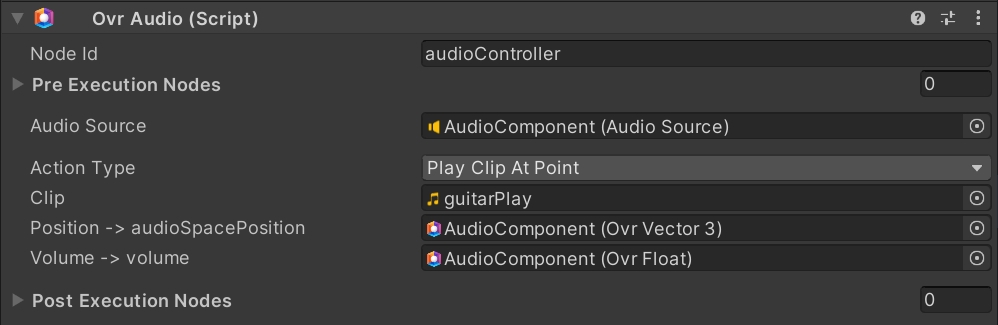

![Example of OvrAudio, with play on a specific position](/files/PPR36Mg0GL4ssFZ7vE1z)

#### Play Scheduled

Plays the clip at a specific time, on the absolute time-line of the Audio system.

The AudioClip must be present in the AudioSource parameters.

{% hint style="info" %}
**Note**: the following attributes are added to the existing ones from the super class [OvrNode](/over-sdk-manual/ovr-component-system-ancient-legacy/nodes/ovrnode.md)
{% endhint %}

<table><thead><tr><th width="205.7659040188865">Name</th><th width="204.3279424240331">Type</th><th width="340.1572968009442">Description</th></tr></thead><tbody><tr><td>AudioSource</td><td><a href="https://docs.unity3d.com/ScriptReference/AudioSource.html">AudioSource</a></td><td>Unity AudioSource Component</td></tr><tr><td>ActionType</td><td><a href="/pages/jBcX1hdmYMcok7FgGMfP">OvrAudioActionType</a></td><td>Action type [<a href="/pages/jBcX1hdmYMcok7FgGMfP">PlayClipAtPoint</a>]</td></tr><tr><td>Time</td><td><a href="/pages/XQfQFoPQbUdpQHI6RGlQ">OvrFloat</a></td><td>Time at which play to clip</td></tr></tbody></table>

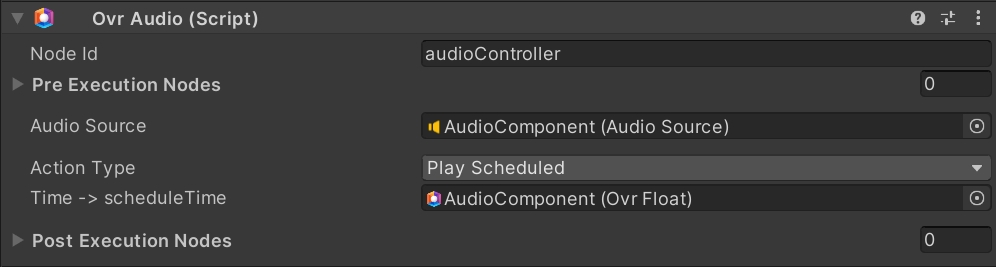

![Example of OvrAudio (play scheduled).](/files/FyH3CVHQh7hizn8N3JMo)

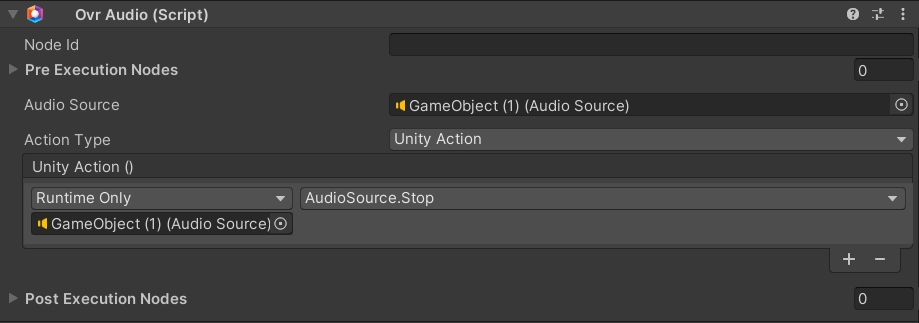

#### Unity Action

Execute the assigned UnityAction. Use this Type to directly access the functions made available by Unity in the specific component.

{% hint style="info" %}
**Note**: the following attributes are added to the existing ones from the super class [OvrNode](/over-sdk-manual/ovr-component-system-ancient-legacy/nodes/ovrnode.md)
{% endhint %}

<table><thead><tr><th width="205.7659040188865">Name</th><th width="215.94102357420294">Type</th><th width="340.1572968009442">Description</th></tr></thead><tbody><tr><td>AudioSource</td><td><a href="https://docs.unity3d.com/ScriptReference/AudioSource.html">AudioSource</a></td><td>Unity AudioSource Component</td></tr><tr><td>ActionType</td><td><a href="/pages/jBcX1hdmYMcok7FgGMfP">OvrAnimatorActionType</a></td><td>Action type [<a href="/pages/jBcX1hdmYMcok7FgGMfP">UnityAction</a>]</td></tr><tr><td>UnityAction</td><td>UnityAction</td><td>UnityAction to be invoked</td></tr></tbody></table>

![](/files/hIXDEaIDryVMVKl0ShGJ)
