Renderer

Description

A Renderer OverNode is used to handle general functionalities for all renderers, by interacting with the Unity Renderer Component.

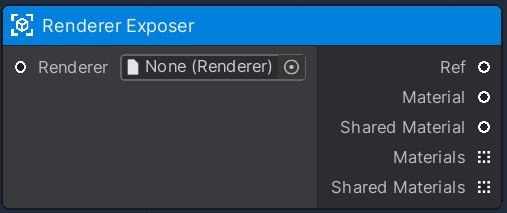

Renderer Exposer

This node is used to expose certain parameters and attributes of a given input Unity Renderer component, which are:

Name	Type	Description
Ref	Renderer	A reference of the input Unity Renderer Component
Material	Material	The first instantiated Material assigned to the renderer.
Shared Material	Material	The shared material of this object.
Materials	Material [ ]	All the instantiated materials of this object.
Shared Materials	Material [ ]	All the shared materials of this object.

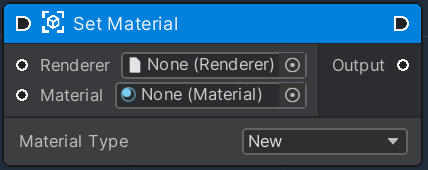

Set Material

This OverNode is used to modify an existing Renderer Component, by setting a new Material. A Material Type can be selected to instruct the node whether or not to set the Shared Material.

This Flow OverNode accepts the following input data:

Name	Type	Description
Renderer	Renderer	A reference of the input Unity Renderer Component
Material	Material	Material to be set
Material Type	Enum	Either New or Shared

and produces the following output data:

Name	Type	Description
Output	Renderer	A reference of the modified Unity Renderer Component

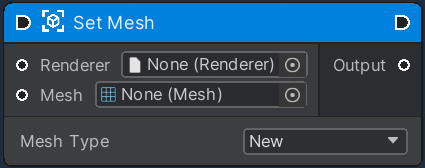

Set Mesh

This node is used to modify an existing Renderer Component, by setting a new Mesh. To perform this action, the GameObject, holding the Renderer Component, must have a MeshFilter assigned.

A Mesh Type can be selected to instruct the node either to set the Shared Mesh or not.

This Flow Node accepts the following input data:

Name	Type	Description
Renderer	Renderer	A reference of the input Unity Renderer Component
Mesh	Mesh	Mesh to be set
Mesh Type	Enum	Either New or Shared

and produces the following output data:

Name	Type	Description
Output	Renderer	A reference of the modified Unity Renderer Component
