Character Controller

Description

OverNode used to interact with Unity's Character Controller

CharacterController Exposer

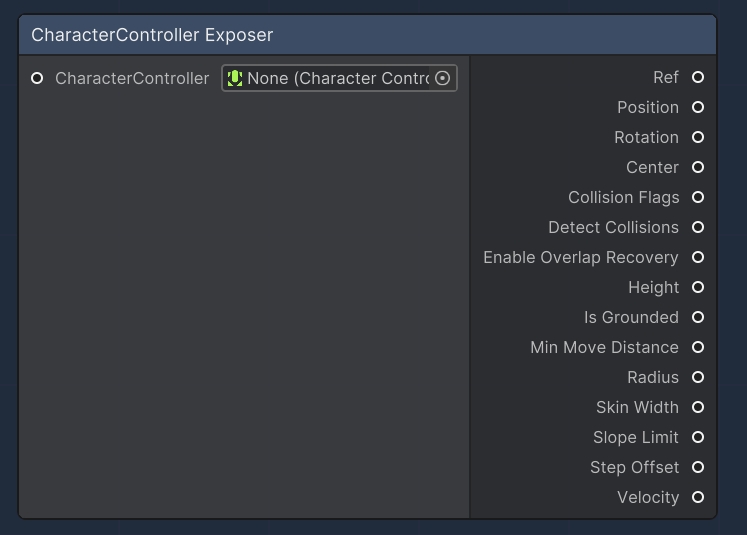

CharacterController Exposer

The "CharacterController Exposer" node provides access to various properties of a CharacterController component. It allows visual scripting to query and utilize properties such as position, rotation, and whether the character is grounded, among others. This node is especially useful for controlling character movement and collision response in a game.

Name	Type	Description
CharacterController	CharacterController	An input slot that accepts a CharacterController component.
Ref	CharacterController	An output slot that provides the reference to the input CharacterController.
Position	Vector3	An output slot that provides the current world position of the character.
Rotation	Quaternion	An output slot that provides the current world rotation of the character.
Center	Vector3	An output slot that provides the center of the character's collider relative to its transform.
Collision Flags	CollisionFlags	An output slot that provides the collision flags that describe how the character last collided with the environment.
Detect Collisions	bool	An output slot indicating whether collision detection is on or off.
Enable Overlap Recovery	bool	An output slot indicating whether overlap recovery is enabled, helping the character to get out of overlapping situations.
Height	float	An output slot that provides the height of the character's collider.
Is Grounded	bool	An output slot that indicates whether the character is grounded.
Min Move Distance	float	An output slot that provides the minimum move distance of the character.
Radius	float	An output slot that provides the radius of the character's collider.
Skin Width	float	An output slot that provides the skin width used for the character's collider.
Slope Limit	float	An output slot that provides the maximum slope angle that the character can climb.
Step Offset	float	An output slot that provides the step offset which determines how high the character can step up.
Velocity	Vector3	An output slot that provides the current velocity of the character.

Move

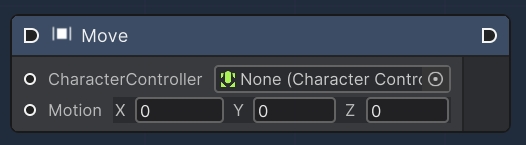

Move node

The "Move" node applies a movement vector to a CharacterController, causing it to move through the scene. The node takes a CharacterController and a Vector3 motion input, representing the movement to apply. This could be used to simulate walking, jumping, or other forms of translation based on user input or AI decision-making.

Name	Type	Description
CharacterController	CharacterController	An input slot that accepts a CharacterController component to which the motion will be applied.
Motion	Vector3	An input slot for the Vector3 motion that defines the direction and distance the CharacterController should move.

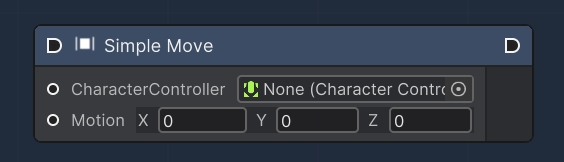

Simple Move

Warp To node

The "Simple Move" node automates the movement of a CharacterController along a plane, typically the ground, based on a speed vector. Unlike the "Move" node, "Simple Move" takes into account the character's speed and gravity. It is used for simpler movement scenarios where the agent needs to be grounded and affected by gravity, such as walking on a flat surface.

Name	Type	Description
CharacterController	CharacterController	An input slot that accepts a CharacterController component to which the motion will be applied.
Motion	Vector3	An input slot for the Vector3 representing the movement speed in a particular direction.
