LineRenderer
Description
A LineRenderer OverNode is used to draw free-floating lines in a 3D space, by interacting with the Unity LineRenderer Component.

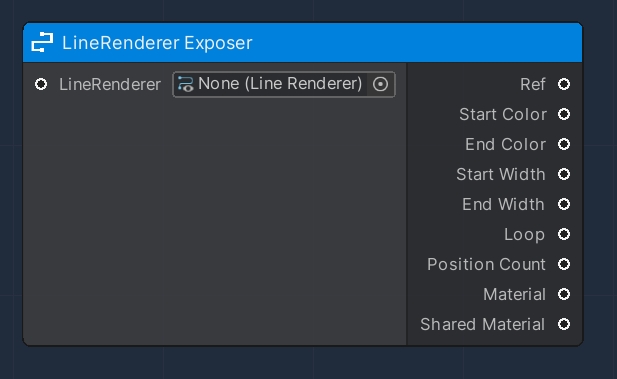

LineRenderer Exposer
This node is used to expose the parameters and attributes of a given input Unity LineRenderer component, which are:
Name | Type | Description |
---|---|---|
Ref | A reference of the input Unity LineRenderer Component | |
Start Color | Color | The color at the start of the line |
End Color | Color | The color at the end of the line |
Start Width | Float | The line width at the start of the line |
End Width | Float | The line width at the end of the line |
Loop | Boolean | Connect the start and end positions of the line together to form a continuous loop |
Position Count | Integer | The number of vertices of the line |
Material | The first instantiated material assigned to the line renderer | |
Shared Material | The shared material of this object |
Handlers

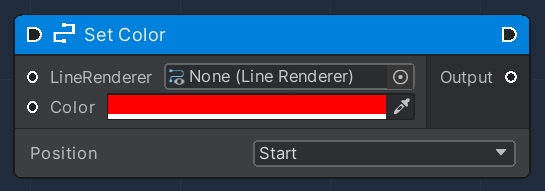

Set Color
This node is used to modify an existing Line Renderer Component, by setting a new Color. A Position
can be selected to instruct the node either to set the start or the end colour.
This Flow Node accepts the following input data:
Name | Type | Description |
---|---|---|
Line Renderer | A reference of the input Unity Line Renderer Component | |
Color | Color | Color to set |
Position | Enum | Either Start or End |
and produces the following output data:
Name | Type | Description |
---|---|---|
Output | A reference of the modified Unity Renderer Component |

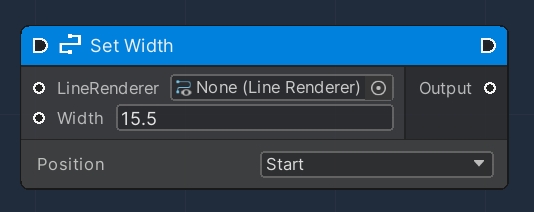

Set Width
This node is used to modify an existing Line Renderer Component, by setting a new line Width. A Position
can be selected to instruct the node either to set the start or the end line width.
This Flow Node accepts the following input data:
Name | Type | Description |
---|---|---|
Line Renderer | A reference of the input Unity Line Renderer Component | |
Width | Float | Width of the line to set |
Position | Enum | Either Start or End |
and produces the following output data:
Name | Type | Description |
---|---|---|
Output | A reference of the modified Unity Renderer Component |

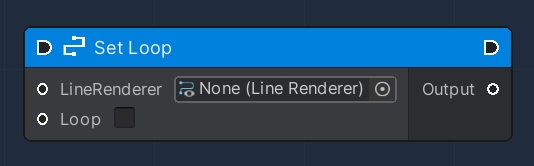

Set Loop
This node is used to modify an existing Line Renderer Component, by editing the loop property of the line.
This Flow Node accepts the following input data:
Name | Type | Description |
---|---|---|
Line Renderer | A reference of the input Unity Line Renderer Component | |
Loop | Bool | This value determines if the line will loop or not |
and produces the following output data:
Name | Type | Description |
---|---|---|
Output | A reference of the modified Unity Renderer Component |

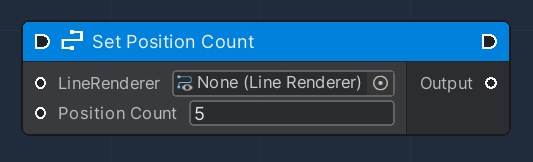

Set Position Count
This node is used to modify an existing Line Renderer Component, by editing the number of vertices contained in the line.
This Flow Node accepts the following input data:
Name | Type | Description |
---|---|---|
Line Renderer | A reference of the input Unity Line Renderer Component | |
Position Count | Integer | This value determines how many vertices the line will contain |
and produces the following output data:
Name | Type | Description |
---|---|---|
Output | A reference of the modified Unity Renderer Component |

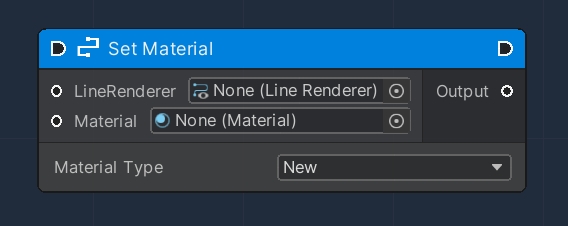

Set Material
This node is used to modify an existing Line Renderer Component, by setting a new Material. A Material Type
can be selected to instruct the node either to set the Shared Material
or not.
This Flow Node accepts the following input data:
Name | Type | Description |
---|---|---|
Line Renderer | A reference of the input Unity Renderer Component | |
Material | Material to be set | |
Material Type | Enum | Either New or Shared |
and produces the following output data:
Name | Type | Description |
---|---|---|
Output | A reference of the modified Unity Renderer Component |

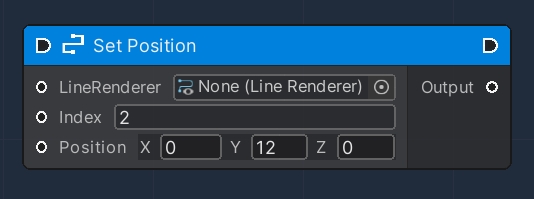

Set Position
This node is used to modify an existing Line Renderer Component, by editing the Position value of one of its vertices.
This Flow Node accepts the following input data:
Name | Type | Description |
---|---|---|
Line Renderer | A reference of the input Unity Renderer Component | |
Index | Integer | Index value of the vertex to edit |
Position | Vector3 | New vertex position |
and produces the following output data:
Name | Type | Description |
---|---|---|
Output | A reference of the modified Unity Renderer Component |
