Material
Description
A Material OverNode is used to handle Materials runtime.

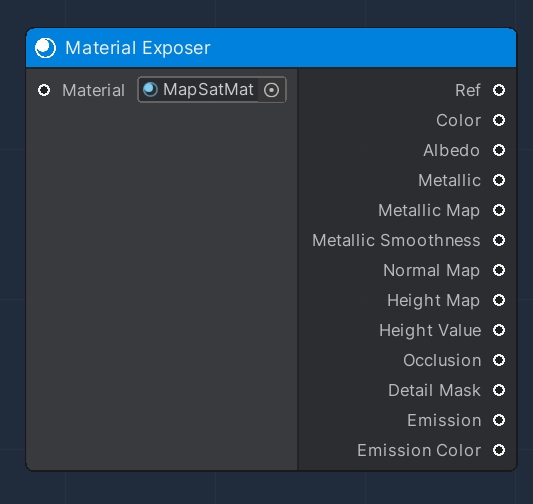

Material Exposer
This OverNode is used to expose certain parameters and attributes of a given input Unity 3D Material asset, which are:
| Name | Type | Description |
|---|---|---|
Ref | A reference of the input Unity3D Material Asset | |
Color | Color | The main color of the Material |
Albedo | The main texture of the Material | |
Metallic | Float | In range 0 to 1, determines how “metal-like” the surface is |
Metallic Map | The metallic gloss map of the Material | |
Metallic Smoothness | Float | In range 0 to 1, determines how smooth the surface is, influencing the light refraction of the material |
Normal Map | Special kind of texture that allow you to add surface detail such as bumps, grooves, and scratches to a model which catch the light as if they are represented by real geometry | |
Height Map | Similar concept to normal mapping, however this technique is more complex - and therefore also more performance-intensive. | |
Height Value | Float | Value to edit the behaviour of the Height Map |
Occlusion | Texture providing information about which areas of the model should receive high or low indirect lighting | |
Detail Mask | Texture allowing the mask off of certain areas of the model to have the detail texture applied | |
Emission | Texture allowing the Material to emit light, like a visible light source. | |
Emission Color | Color | Specifies the color and intensity of the emission |
Note: Emission and Emission Color are only available if the Emission Flag of the Material is set to True.
Handlers

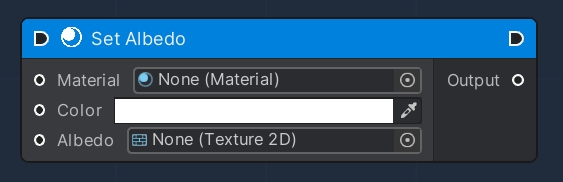

Set Albedo
This OverNode is used to modify an existing Material, by changing the main texture and colour associated to it.
This Flow OverNode accepts the following input data:
| Name | Type | Description |
|---|---|---|
Material | A reference of the input Unity3D Material | |
Color | Color | Color to be set |
Albedo | Texture to be set as the new main texture |
and produces the following output data:
| Name | Type | Description |
|---|---|---|
Output | A reference of the modified Unity3D Material |

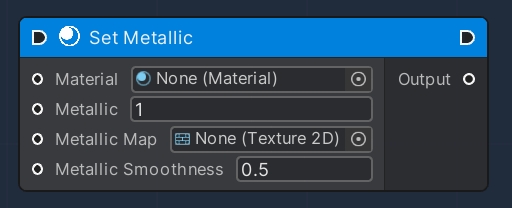

Set Metallic
This OverNode is used to modify an existing Material, by editing its parameters associated with the Metallic Mode.
This Flow OverNode accepts the following input data:
| Name | Type | Description |
|---|---|---|
Material | A reference of the input Unity3D Material | |
Metallic | Float | Sets how "metal like" the surface of the material will be |
Metallic Map | The new metallic map of the Material | |
Metallic Smoothness | Float | Sets how smooth the surface of the material will be |
and produces the following output data:
| Name | Type | Description |
|---|---|---|
Output | A reference of the modified Unity3D Material |

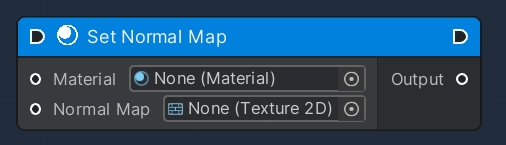

Set Normal Map
This OverNode is used to modify an existing Material, by setting a new Normal Map for the material.
This Flow OverNode accepts the following input data:
| Name | Type | Description |
|---|---|---|
Material | A reference of the input Unity3D Material | |
Normal Map | The new Normal map of the Material |
and produces the following output data:
| Name | Type | Description |
|---|---|---|
Output | A reference of the modified Unity3D Material |

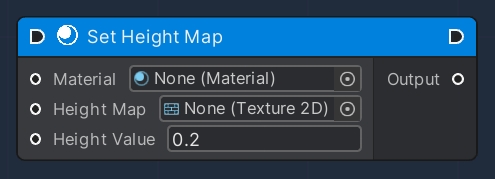

Set Height Map
This OverNode is used to modify an existing Material, by setting a new Height Map for the material.
This Flow OverNode accepts the following input data:
| Name | Type | Description |
|---|---|---|
Material | A reference of the input Unity3D Material | |
Height Map | The new Height map of the Material | |
Height Value | Float | New height value of the map (range 0 to 1) |
and produces the following output data:
| Name | Type | Description |
|---|---|---|
Output | A reference of the modified Unity3D Material |

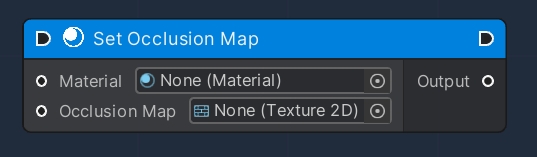

Set Occlusion Map
This OverNode is used to modify an existing Material, by setting a new Occlusion Map for the material.
This Flow OverNode accepts the following input data:
| Name | Type | Description |
|---|---|---|
Material | A reference of the input Unity3D Material | |
Occlusion Map | The new Occlusion map of the Material |
and produces the following output data:
| Name | Type | Description |
|---|---|---|
Output | A reference of the modified Unity3D Material |

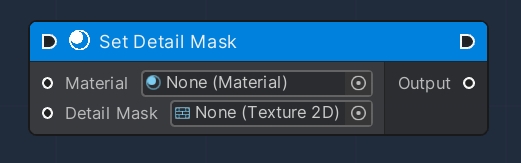

Set Detail Mask
This OverNode is used to modify an existing Material, by setting a new Detail Mask for the material.
This Flow OverNode accepts the following input data:
| Name | Type | Description |
|---|---|---|
Material | A reference of the input Unity3D Material | |
Detail Mask | The new Detail mask of the Material |
and produces the following output data:
| Name | Type | Description |
|---|---|---|
Output | A reference of the modified Unity3D Material |

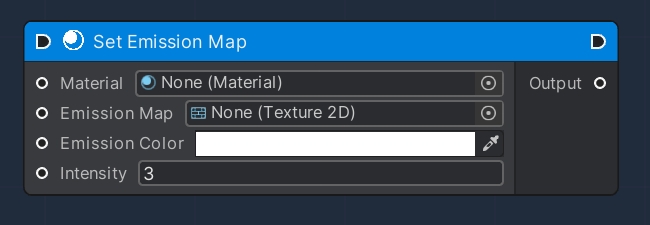

Set Emission Map
This OverNode is used to modify an existing Material, by setting a new Emission Map for the material.
This Flow OverNode accepts the following input data:
| Name | Type | Description |
|---|---|---|
Material | A reference of the input Unity3D Material | |
Emission Map | The new Emission map of the Material | |
Emission Color | Color | The color of the new Emission map |
Intensity | Float | Intensity of the light emitted |
and produces the following output data:
| Name | Type | Description |
|---|---|---|
Output | A reference of the modified Unity3D Material |

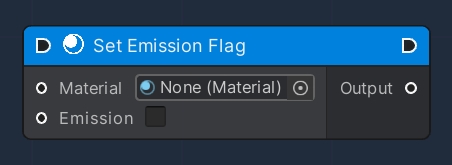

Set Emission Flag
This OverNode is used to modify an existing Material, by editing the value of the Emission Flag of the Material.
This Flow OverNode accepts the following input data:
| Name | Type | Description |
|---|---|---|
Material | A reference of the input Unity3D Material | |
Emission | Boolean | The new Emission Flag value |
and produces the following output data:
| Name | Type | Description |
|---|---|---|
Output | A reference of the modified Unity3D Material |
